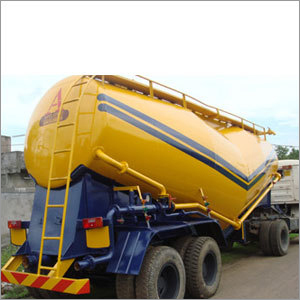

2 Axle Tank Trailer

2 Axle Tank Trailer
2 Axle Tank Trailer
Send Inquiry
Product Code : ATT 03
Product Description

With an excellent support of our dexterous workforce, we are able to manufacture and export a wide array of 2 Axle Tank Trailer.  Available in different specifications, these tanker trailers are widely used in construction, cement, oil and engineering industries for safe transportation of materials. These tanker trailers are manufactured by our workforce using certified grade metals and components. Before supplying to clients, 2 Axle Tank Trailer is duly tested by us.

  • Excellent storage space
  • Rust resistant
  • Leak proof tanker

Technical Information:

  • Axie: 10 Stud. axie capacity 12000kgs at 105 km/hr Speed (2 Nos.)
  • King Pin: Standard Welding tpe Size 50.2 mm
  • Landing Gear: Standard 80 ton load capacity/ pair
  • Rims: 7.5 * 20 10 Std 8 Nos
  • Tyres: 10.00-20 8 Nos
  • Electric System: 7 way socket, Tail Lamp with Guards
  • Painting: 1 coat of anti- corrosive primer & 2 coat of finish paint
  • Rubbing Plate: Thickness 12 mm
  • Aeration Cloth: Polyester solid woven PTFE Treated in tubular form
  • Valves: Rubber coated butterfly type Audco make
  • Material Pipe Line: 'C' Class 125mm N.B. Tata make
  • Air Pipe Line: 'B' Class 75 & 50mm N.B. Tata make
  • Mudguards: Made out of 2mm Thick M.S. Sheet Supported properly
  • Main Hole: 2/3 Nos with 6 Nos Locking bolts
